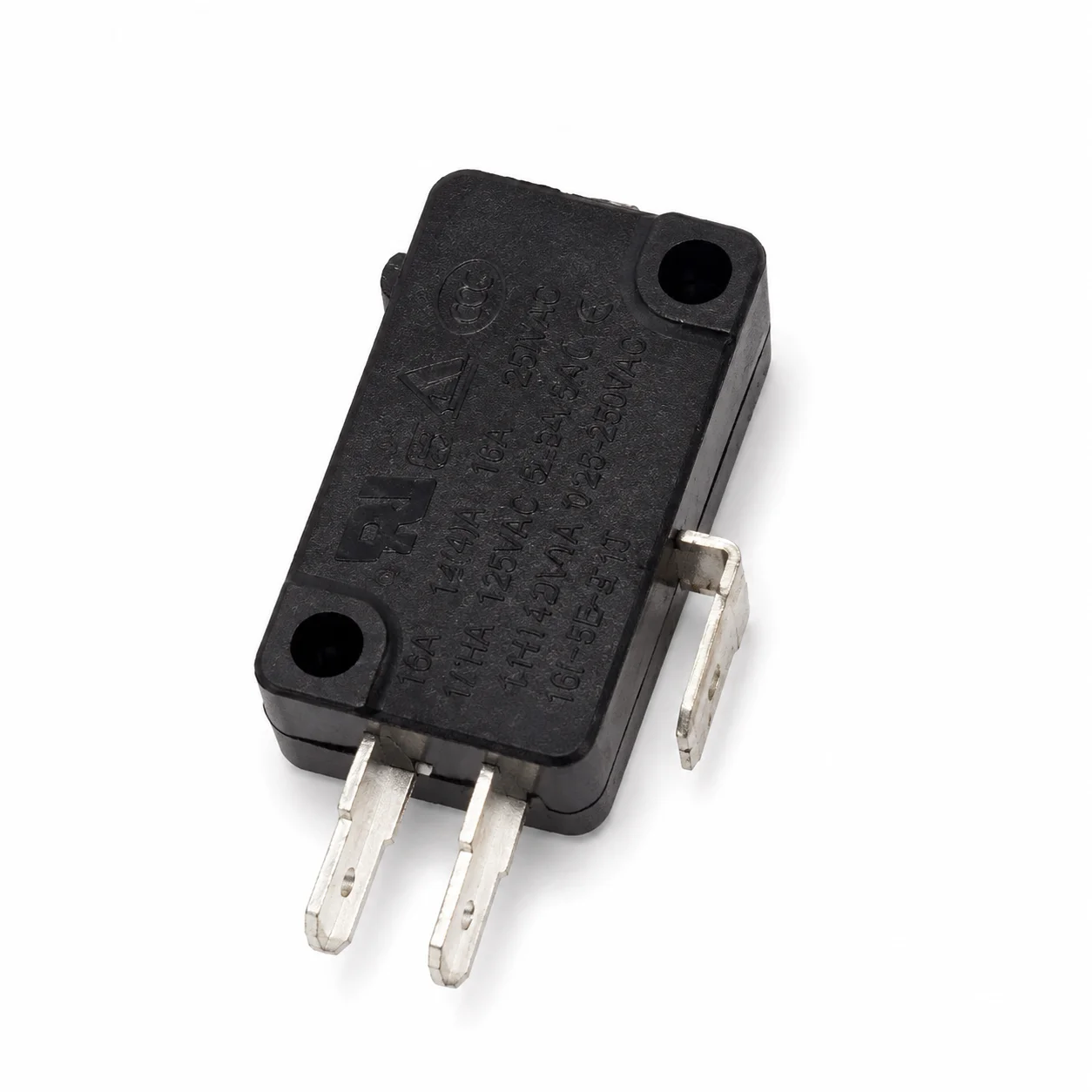

Universal Appliance Micro Switch – 3-Pin
The Universal 3-Pin Appliance Micro Switch is a replacement electrical switch suitable for selected microwave ovens, dishwashers, tumble dryers, washing machines and other household appliances. It is commonly used to detect the position of a door, latch, lever, float or moving mechanism.
The switch changes its electrical contacts when the actuator is pressed or released, allowing the appliance control system to confirm that a safety mechanism or operating component is in the correct position. A faulty micro switch may prevent the appliance from starting, cause intermittent operation or stop a programme unexpectedly.
Product Features
- Part type: Appliance micro switch / limit switch
- Terminal configuration: 3-pin
- Contact arrangement: Common, normally open and normally closed
- Compact snap-action switching mechanism
- Suitable for selected microwave ovens
- Suitable for selected dishwashers
- Suitable for selected tumble dryers
- Suitable for selected washing machines and other appliances
- May be used for door, latch, float, pressure or position detection
- Replacement for worn, burnt, intermittent or non-working micro switches
Common Symptoms This Part May Fix
- Appliance not starting
- Microwave not detecting that the door is closed
- Dishwasher not beginning the wash programme
- Tumble dryer not operating when the door is closed
- Appliance starting and stopping intermittently
- Switch clicking mechanically but not changing electrical state
- Burnt, loose or damaged electrical terminals
- Incorrect continuity readings across the switch contacts
- Door, float or safety-related fault appearing
- Appliance operating only when pressure is applied to the switch
Important Fitment Note
This is a universal-style micro switch and is not suitable for every appliance. Before ordering, compare the electrical rating, three-terminal arrangement, terminal width, switch-body dimensions, actuator position, mounting-hole spacing and operating direction with the original switch.
The COM, NO and NC terminals must be connected in the same configuration as the original component. Incorrect wiring may cause the appliance to operate incorrectly or bypass an important safety function.
Do not bypass a door or safety micro switch. Microwave ovens contain high-voltage components that may retain a potentially lethal electrical charge after the appliance has been unplugged. Microwave testing and repairs should only be carried out by a qualified appliance technician.
Universal Appliance Micro Switch – 3-Pin
R69,00
Universal Appliance Micro Switch – 3-Pin
The Universal 3-Pin Appliance Micro Switch is a replacement electrical switch suitable for selected microwave ovens, dishwashers, tumble dryers, washing machines and other household appliances. It is commonly used to detect the position of a door, latch, lever, float or moving mechanism.
The switch changes its electrical contacts when the actuator is pressed or released, allowing the appliance control system to confirm that a safety mechanism or operating component is in the correct position. A faulty micro switch may prevent the appliance from starting, cause intermittent operation or stop a programme unexpectedly.
Product Features
- Part type: Appliance micro switch / limit switch
- Terminal configuration: 3-pin
- Contact arrangement: Common, normally open and normally closed
- Compact snap-action switching mechanism
- Suitable for selected microwave ovens
- Suitable for selected dishwashers
- Suitable for selected tumble dryers
- Suitable for selected washing machines and other appliances
- May be used for door, latch, float, pressure or position detection
- Replacement for worn, burnt, intermittent or non-working micro switches
Common Symptoms This Part May Fix
- Appliance not starting
- Microwave not detecting that the door is closed
- Dishwasher not beginning the wash programme
- Tumble dryer not operating when the door is closed
- Appliance starting and stopping intermittently
- Switch clicking mechanically but not changing electrical state
- Burnt, loose or damaged electrical terminals
- Incorrect continuity readings across the switch contacts
- Door, float or safety-related fault appearing
- Appliance operating only when pressure is applied to the switch
Important Fitment Note
This is a universal-style micro switch and is not suitable for every appliance. Before ordering, compare the electrical rating, three-terminal arrangement, terminal width, switch-body dimensions, actuator position, mounting-hole spacing and operating direction with the original switch.
The COM, NO and NC terminals must be connected in the same configuration as the original component. Incorrect wiring may cause the appliance to operate incorrectly or bypass an important safety function.
Do not bypass a door or safety micro switch. Microwave ovens contain high-voltage components that may retain a potentially lethal electrical charge after the appliance has been unplugged. Microwave testing and repairs should only be carried out by a qualified appliance technician.
Unsure about compatibility with your machine? Please confirm compatibility before ordering. Send us your model number and we’ll confirm it for you.
