Samsung Washing Machine Stator Sensor
R690,00
Check your model number below. Still unsure? Send us a photo of your appliance label.
About this part

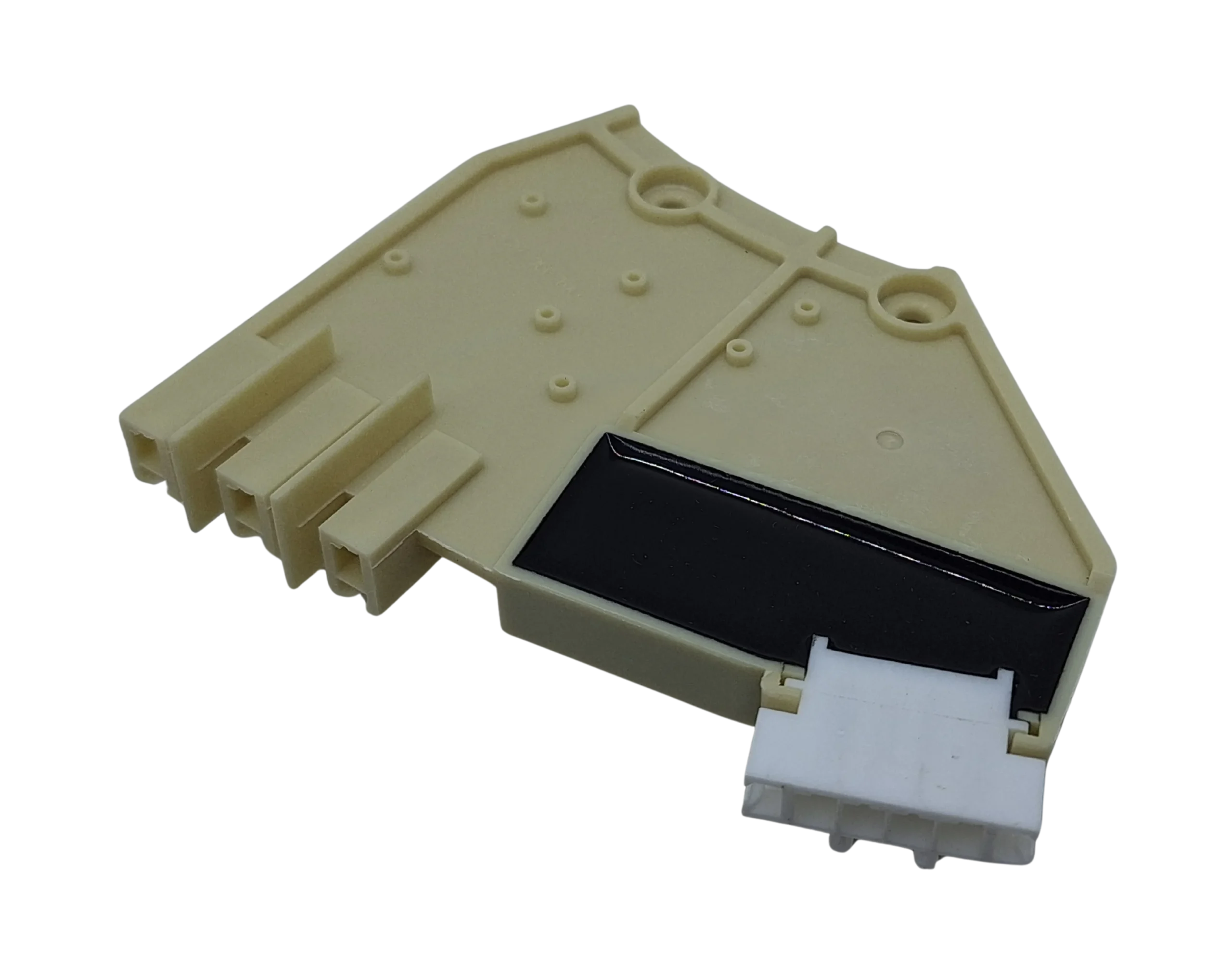

Samsung Washing Machine Hall Sensor – DC31-00076A
The Samsung Washing Machine Hall Sensor DC31-00076A is a replacement motor rotor-position sensor designed for selected Samsung direct-drive washing machines and washer-dryers. This sensor monitors the movement, direction and rotational speed of the motor rotor.
The Hall sensor sends motor feedback information to the washing machine control board, allowing the appliance to control the drum accurately during washing, tumbling and spinning. A faulty sensor may cause the drum to jerk, fail to rotate, stop during a programme or display a motor-related error code.
Product Features
- OEM/reference part number: DC31-00076A
- Catalogue references: AP4336294, PS4204666, EAP4204666
- Part type: Washing machine Hall sensor / rotor position sensor
- Also known as a motor position sensor or motor feedback sensor
- Suitable for selected Samsung direct-drive washing machines and washer-dryers
- Fits onto the direct-drive BLDC motor assembly
- Monitors the movement, direction and speed of the motor rotor
- Sends motor feedback information to the electronic control board
- Helps the control board regulate washing and spinning speeds
- Replacement for faulty, damaged or non-working Hall sensors
Common Symptoms This Part May Fix
- 3E or 3C motor-related error code appearing
- Washing machine drum not rotating
- Drum jerking or twitching instead of rotating normally
- Washing machine washing but not spinning
- Machine starting and then stopping shortly afterwards
- Drum rotating slowly or inconsistently
- Machine unable to reach the selected spin speed
- Programme stopping during the wash or spin cycle
- Intermittent motor operation
- Control board unable to detect motor movement correctly
Important Fitment Note
Samsung washing machines may use different Hall sensors depending on the complete model number, motor assembly and production run. Before ordering, compare the original part number, electrical connector, sensor shape and mounting position with the original component. Always check the complete model suffix, such as /XFA or /FA.
