Samsung Tumble Dryer Drive Motor – DC31-00106D
The Samsung Tumble Dryer Drive Motor DC31-00106D is a replacement AC motor designed for selected Samsung tumble dryers. It provides the mechanical power required to rotate the dryer drum and operate the connected airflow components during the drying programme.
This motor is suitable for replacing an original unit that has become noisy, seized, electrically defective or unable to rotate the drum correctly. It is commonly used in selected Samsung heat-pump and condenser tumble dryers where the complete model number and production version match.
Product Features
- Samsung part reference: DC31-00106D
- Alternative number format: DC3100106D
- Common motor marking: XD-130G
- Part type: Tumble dryer AC drive motor
- Motor design: 2-pole AC motor
- Rated power: approximately 100W
- Operating voltage: 220–240V AC
- Frequency: 50Hz
- Rated current: approximately 1.0A
- Operating speed: approximately 2720 r/min
- Designed for use with an 8µF 450V motor run capacitor
- Suitable for selected Samsung tumble dryers
- Drives the dryer drum through the main drive-belt system
- Also powers the applicable fan or blower arrangement
Common Symptoms This Part May Fix
- Dryer drum not rotating
- Motor humming without starting
- Drum starting only when manually assisted
- Motor stopping after operating for a short period
- Grinding, rattling or squealing from the motor area
- Dryer producing a burning smell
- Motor overheating during operation
- Drum rotating slowly or inconsistently
- Dryer tripping the electrical supply when the motor starts
- Excessive movement caused by damaged motor-support rubbers
- Motor shaft or pulley not rotating freely
Important Diagnostic Note
A dryer drum that does not rotate does not automatically indicate a failed motor. Inspect the motor run capacitor, main drum belt, short motor belt, tensioner, pulleys, drum rollers, fan blades, wiring and electronic control system before replacing the motor.
A seized drum, blower wheel or pulley can overload and damage the replacement motor. All driven components must rotate freely before the new motor is connected.
Package Contents

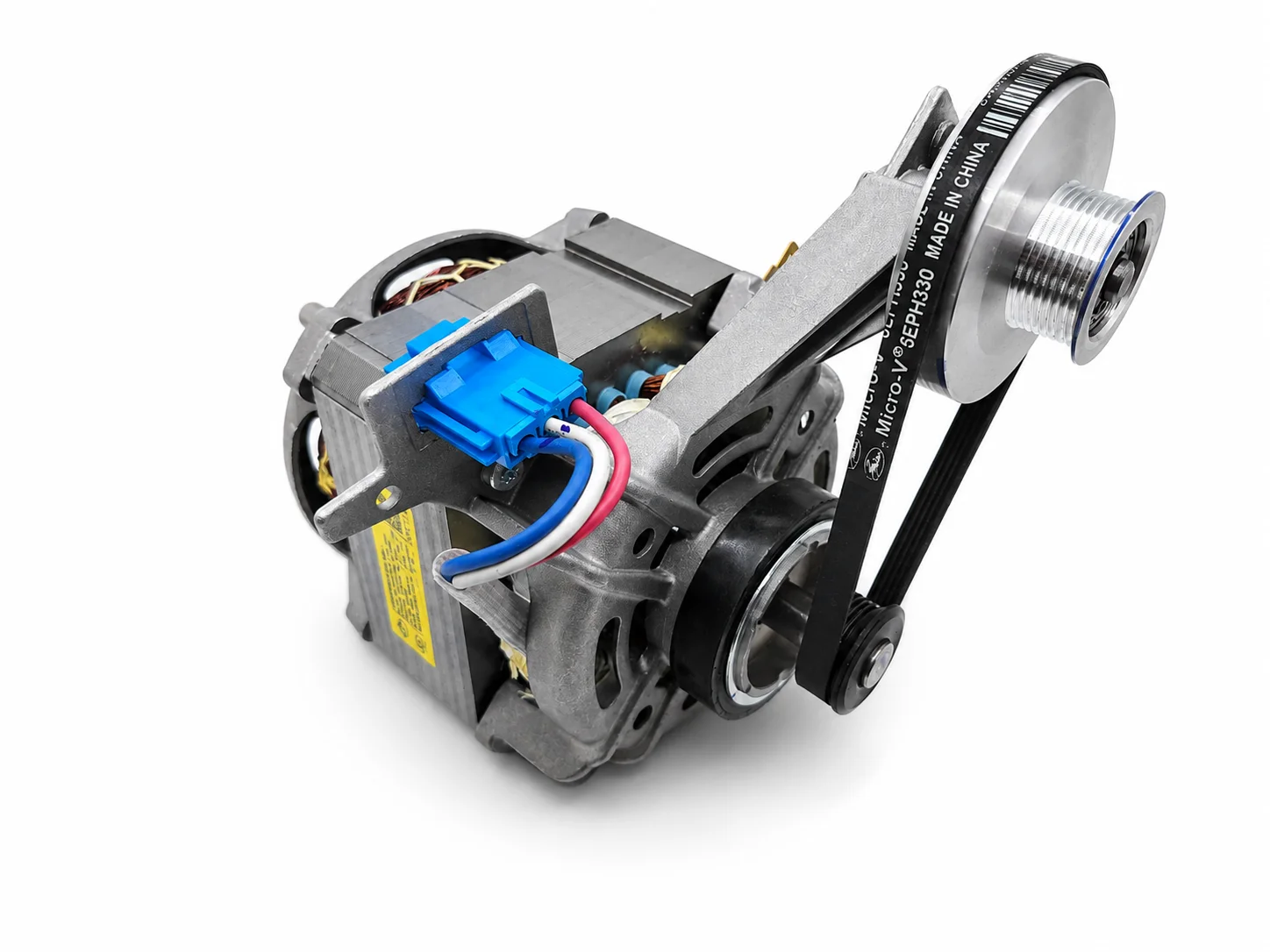

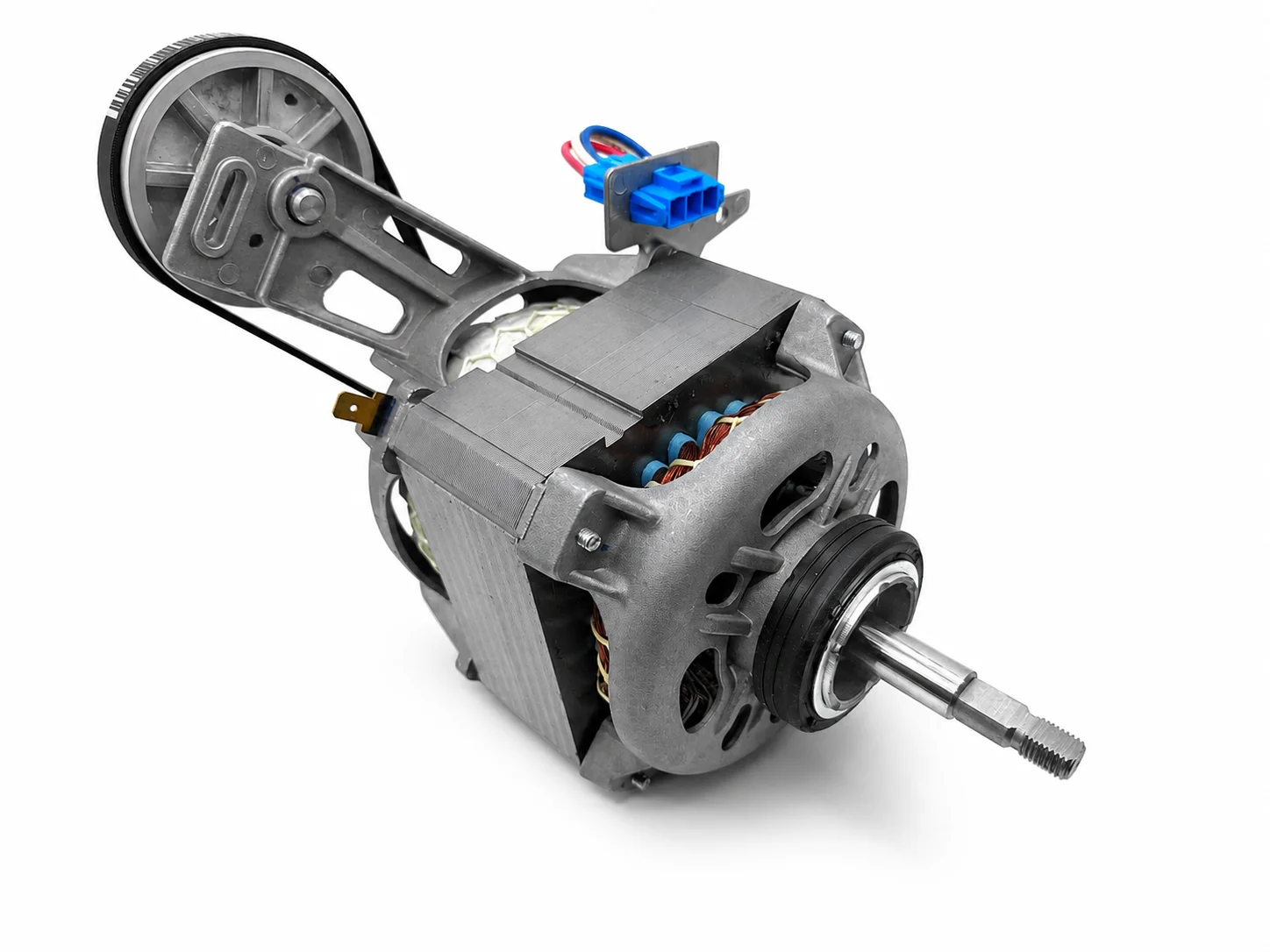

Some versions are supplied as a complete motor assembly with the pulley, motor-support rubbers and short Micro-V belt. Confirm the supplied components from the product images and listing before ordering. The 8µF motor run capacitor is not included unless specifically stated.
Important Fitment Note
Samsung dryers may use similar-looking motors with different electrical ratings, shafts, pulleys, brackets or wiring connections. Before ordering, confirm the complete DC31-00106D reference and compare the motor label, voltage, wattage, shaft, pulley, connector, mounting rubbers and belt arrangement with the original component.
Always check the complete dryer model number and production version from the appliance rating label. A matching base model without the correct suffix or version number does not guarantee compatibility.
Disconnect the tumble dryer from the electrical supply before installation. Motor replacement should be performed by a suitably experienced appliance technician.
