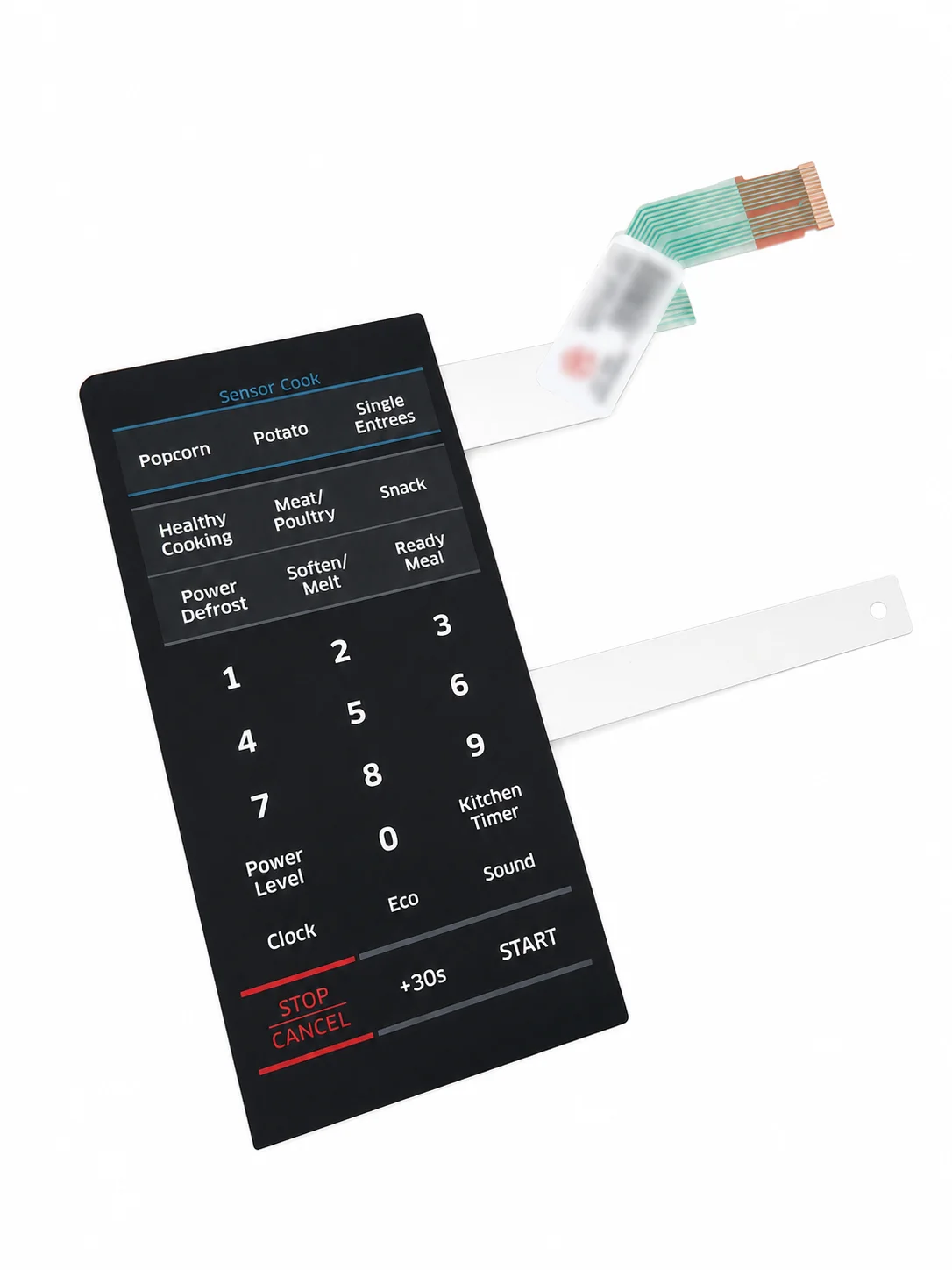

Samsung Microwave Oven Touch Pad / Membrane Keypad – ME0113M1 – DE34-00360Q
The Samsung Microwave Oven Touch Pad DE34-00360Q is a replacement membrane keypad designed for the Samsung ME0113M1 microwave oven. It provides the labelled control buttons used to enter cooking times, select power levels, activate automatic cooking programmes and operate the microwave's electronic functions.
The touch pad connects to the microwave control board through a flexible ribbon cable. It is suitable for replacing an original keypad with worn markings, damaged conductive tracks, a cracked or peeling membrane, or buttons that no longer respond correctly.
Product Features
- Part reference: DE34-00360Q
- Part type: Microwave touch pad / membrane keypad
- Designed for the Samsung ME0113M1 control-panel layout
- Flexible membrane construction with printed programme buttons
- Connects to the electronic control board through a ribbon cable
- Allows cooking-time, power-level and programme selection
- Replacement for worn, cracked, damaged or unresponsive keypads
- Suitable for compatible South African Samsung microwave ovens
Common Symptoms This Part May Fix
- Some microwave buttons not responding
- Start or stop button not working
- Number buttons operating intermittently
- Touch pad requiring excessive pressure
- Buttons activating the incorrect function
- Microwave display working but not accepting commands
- Cracked, peeling or damaged keypad surface
- Worn or unreadable button markings
- Damaged or corroded membrane ribbon cable
- Keypad operation changing when the control panel is moved
Important Diagnostic Note
Unresponsive buttons do not always indicate a faulty touch pad. Similar symptoms may be caused by a contaminated ribbon connection, damaged control-board connector, faulty electronic control board, moisture damage or a defective door-switch circuit.
Inspect the ribbon cable and PCB connector before replacing the keypad. Avoid scratching, sharply bending or contaminating the exposed ribbon contacts during installation.
Important Fitment Note
Before ordering, confirm the complete microwave model and compare the DE34-00360Q reference, printed button layout, membrane dimensions, ribbon-cable position, contact count and connector orientation with the original touch pad.
Do not confuse the ME0113M1/XFA with the similar ME0113M/XFA. These models use different membrane-keypad references and must not be treated as interchangeable.
This product is the membrane touch pad only unless specifically stated otherwise. The electronic control board, LED display, plastic control-panel frame and mounting hardware are not included.
Critical Safety Warning
Microwave ovens contain high-voltage components that may retain a potentially lethal electrical charge after the appliance has been disconnected. Repairs must be performed only by a suitably qualified and experienced microwave technician.
Never operate the microwave with the outer cabinet removed. Ensure that all shielding, screws and safety interlocks are correctly reinstalled before returning the appliance to service.
