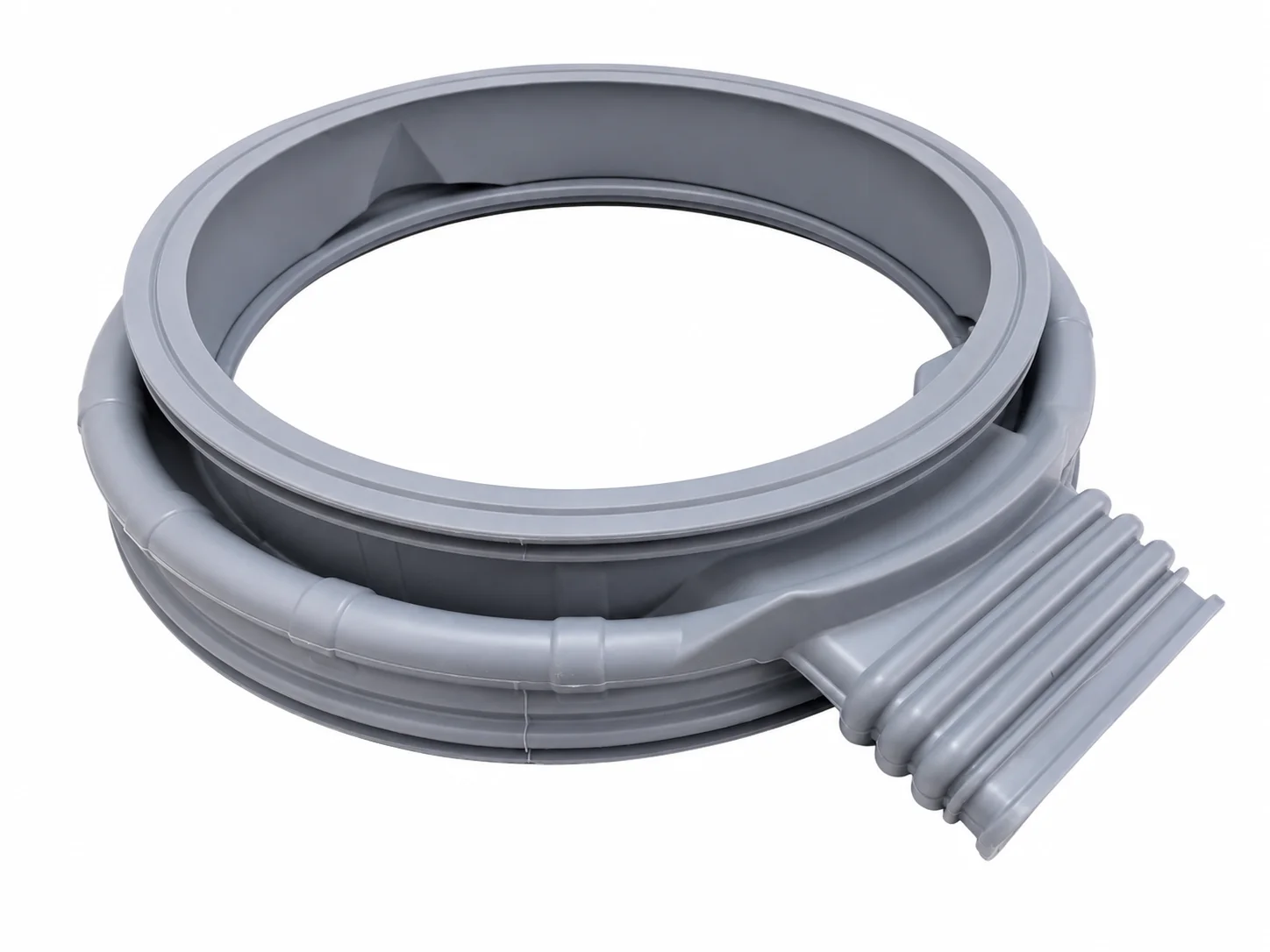

Samsung Door Boot DC64-01827A

Samsung Washer-Dryer Door Boot / Door Gasket – DC64-01827A

The Samsung Washer-Dryer Door Boot DC64-01827A is a replacement rubber door gasket designed for selected Samsung front-loading washer-dryers. It forms a watertight connection between the outer tub and front cabinet while allowing the inner drum to rotate during washing and spinning.

The moulded gasket includes the applicable lip and hose connection required by compatible washer-dryer models. It is suitable for replacing an original door boot that has become torn, cracked, stretched, perished, distorted or damaged by trapped clothing.

Product Features

• Samsung part reference: DC64-01827A
• Alternative number format: DC6401827A
• Common cross-reference: DC98-01805B
• Part type: Washer-dryer door boot / door gasket / door diaphragm
• Suitable for selected Samsung front-loading washer-dryers
• Flexible rubber construction
• Moulded lip and oval hose connection
• Creates a watertight seal around the appliance door opening
• Connects the outer tub to the front cabinet
• Replacement for torn, cracked, stretched or leaking door seals

Common Symptoms This Part May Fix

• Water leaking from underneath the appliance door
• Water running down the front of the washer-dryer
• Visible tear, split or puncture in the door gasket
• Door boot pulling away from the cabinet or outer tub
• Clothing becoming trapped between the drum and gasket
• Excessive mould or deterioration on the original seal
• Water collecting inside damaged folds of the gasket
• Gasket rubbing against the rotating drum
• Outer or inner retaining clamp repeatedly coming loose
• Leakage from the moulded hose connection

Important Inspection Note

Inspect the inner and outer retaining clamps before installing the new door boot. Stretched, damaged or corroded clamps should be replaced to ensure that the gasket remains securely fitted.

Check the drum for excessive movement or misalignment. Worn bearings, a damaged drum spider or excessive drum movement may cause the replacement gasket to rub, tear or become dislodged.

Important Fitment Note

Before ordering, confirm the complete DC64-01827A reference and compare the gasket shape, drum opening, cabinet lip, moulded hose connection, drain holes and retaining-clamp grooves with the original door boot.

Samsung washer-dryers with similar model numbers may use different door seals depending on the production version. Always confirm the complete model number and suffix shown on the appliance rating label.

Install the gasket in the correct orientation. All alignment marks, drain openings and moulded connections must be positioned exactly as they were on the original component.

Disconnect the appliance from the electrical and water supplies before installation. Replacing the inner retaining clamp may require substantial disassembly of the front cabinet.
