Hisense Fridge Inverter Board – OEM Donper DHJ-C425D-ZP1D-FP

Hisense Fridge Inverter Board – OEM Donper DHJ-C425D-ZP1D-FP

The Hisense Fridge Inverter Board is an OEM Donper compressor drive module for selected Hisense refrigerators. Identified by the DHJ-C425D-ZP1D-FP model marking and 11509018100 label reference, this module controls the inverter compressor using a variable-frequency, three-phase output.

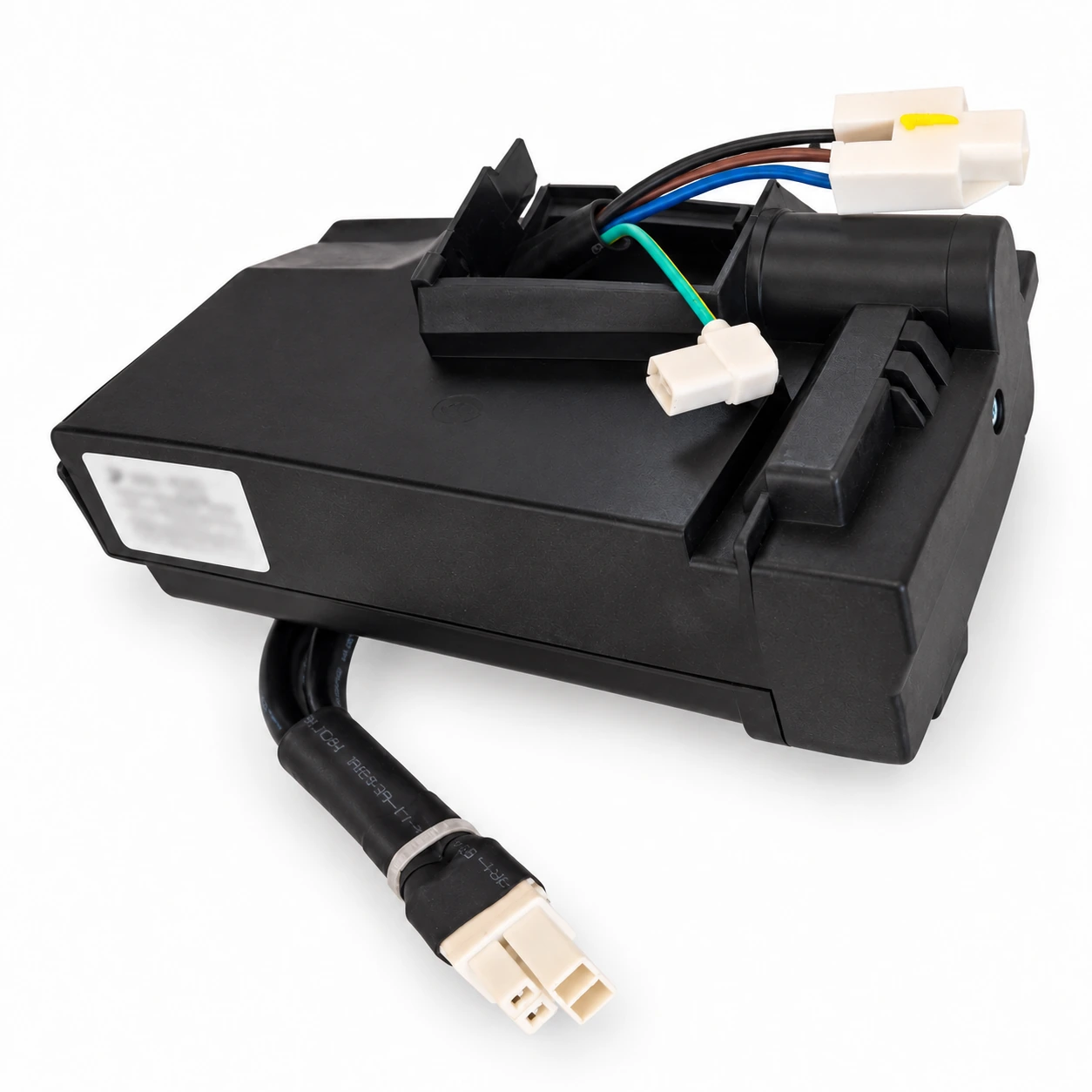

Supplied in the black protective housing with the wiring and connectors shown, this board is intended to replace a matching faulty compressor inverter module. Compare the complete identification label and connections with your original board before ordering.

Product Features

• Part type: Fridge compressor inverter board / drive module
• Manufacturer: Donper
• Quality: OEM – Original Equipment Manufacturer
• Board model: DHJ-C425D-ZP1D-FP

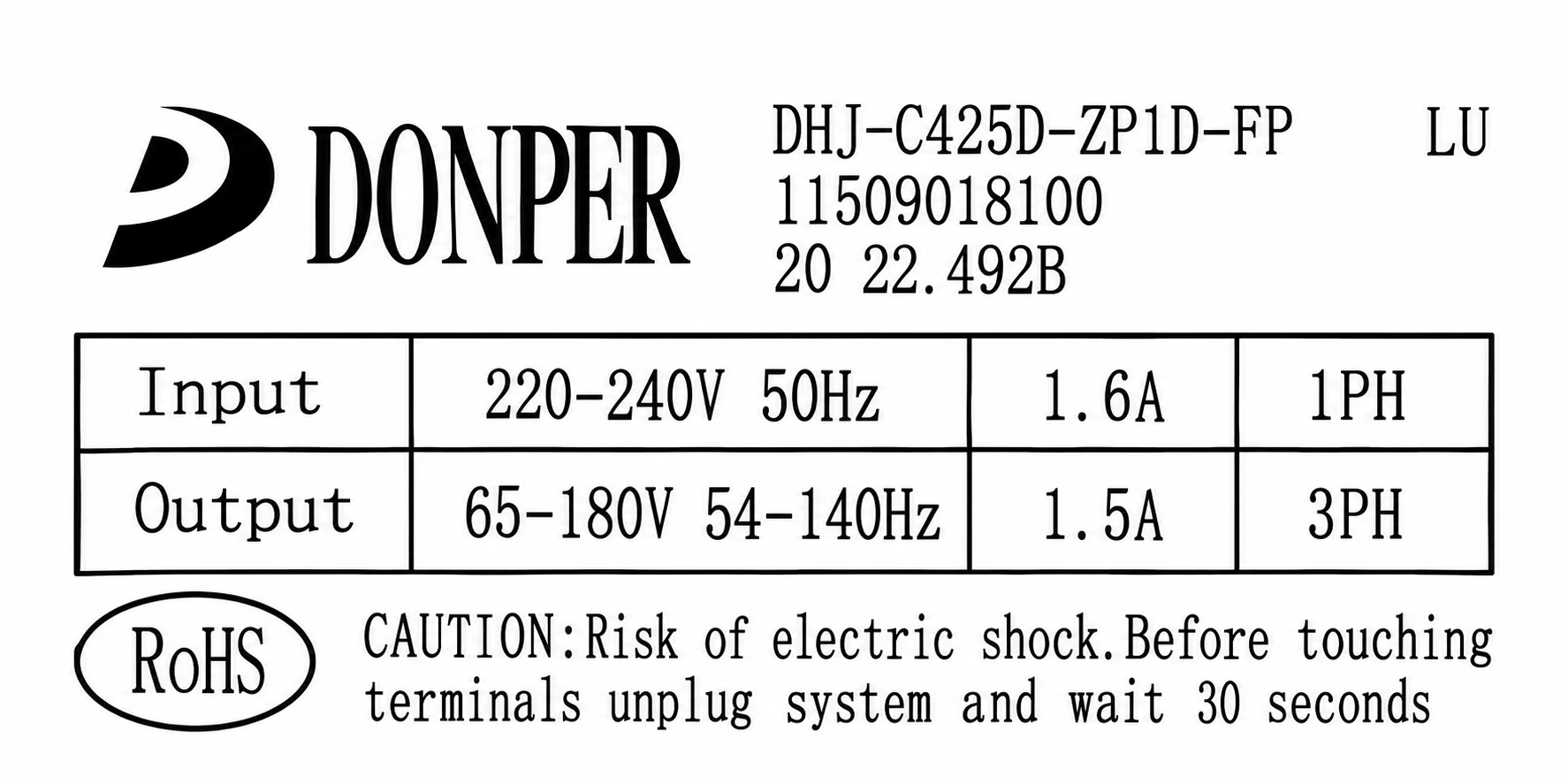

• Label reference: 11509018100
• Input: 220–240V, 50Hz, 1.6A, single phase
• Output: 65–180V, 54–140Hz, 1.5A, three phase
• Suitable for selected Hisense fridge models using the matching Donper inverter system
• Includes the housing and attached connections shown in the product photographs

Common Symptoms This Part May Fix

• Compressor not starting despite a cooling demand
• Fridge and freezer failing to cool because the compressor is not running
• Intermittent compressor operation caused by a faulty inverter module
• Inverter or compressor-drive fault indications on applicable models

These symptoms can also result from other faults. Confirm the inverter board diagnosis before replacing the module.

Important Fitment Note

Model numbers alone do not guarantee fitment. Hisense refrigerators may use different boards across production versions. Match the complete DHJ-C425D-ZP1D-FP code, electrical ratings, plugs, wiring and mounting arrangement with your original board. This is a compressor inverter module, not the refrigerator's main control board.

If you are unsure, send SparesZA a clear photo of your appliance model plate and original board label before ordering.
