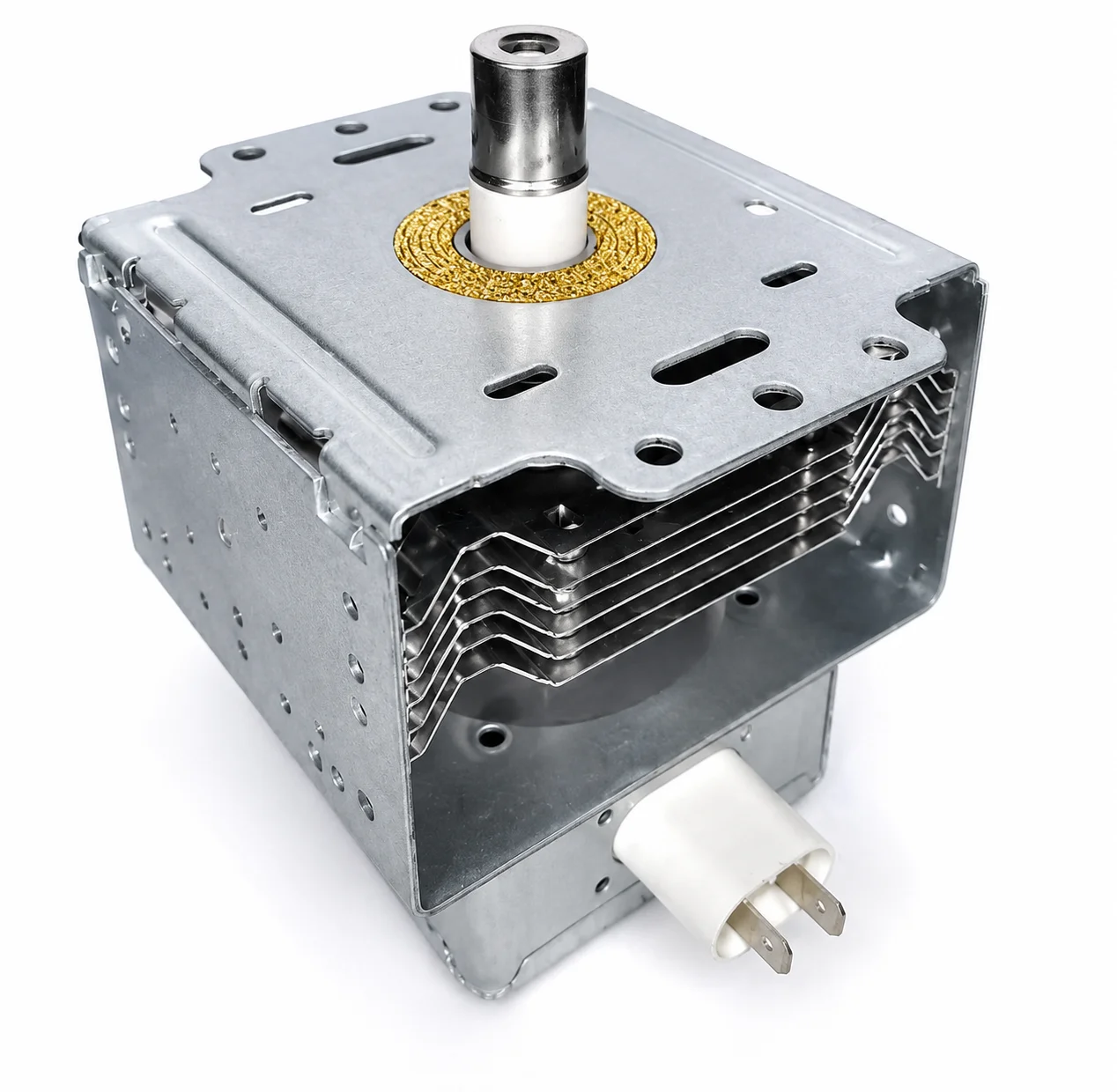

Generic Inverter Microwave Oven Magnetron – 2M291-M32 – 1200W
The Generic Inverter Microwave Oven Magnetron 2M291-M32 – 1200W is an aftermarket replacement microwave-generating tube suitable for selected high-power inverter microwave ovens. It converts the high-voltage electrical output from the microwave inverter board into microwave energy used to heat and cook food.
This replacement is intended for appliances using a compatible 2M291-M32 magnetron configuration. Compatibility must be confirmed using the complete original magnetron reference, antenna design, mounting arrangement, cooling-fin orientation and electrical-terminal position.
Product Features
- Magnetron reference: 2M291 / 2M291-M32
- Product type: Inverter microwave oven magnetron
- Generic aftermarket replacement component
- Commonly marketed as a 1200W-class magnetron
- Suitable for selected high-power inverter microwave ovens
- Supplier-listed operating frequency: approximately 2455MHz
- Supplier-listed filament voltage: approximately 3.3V AC
- Works with a compatible microwave inverter power board
- Generates microwave energy for heating and cooking food
- Suitable for replacing a failed magnetron where the complete configuration matches
Common Symptoms This Part May Fix
- Microwave operates but does not heat food
- Food heating considerably more slowly than normal
- Weak or inconsistent heating performance
- Microwave producing an unusually loud electrical hum
- Arcing or sparking around the magnetron antenna
- Burnt, cracked or damaged magnetron antenna cap
- Microwave stopping shortly after heating begins
- Inverter fault occurring when the heating cycle starts
- Burning smell from the magnetron or waveguide area
- Magnetron filament testing open circuit
- Magnetron terminals showing leakage or continuity to the metal casing
Important Diagnostic Note
An inverter microwave that operates without heating does not automatically have a faulty magnetron. The inverter power board, control board, door switches, thermal protectors, cooling fan and associated wiring must also be inspected and tested.
A defective inverter power board may damage a replacement magnetron. Diagnose the inverter circuit and inspect the connectors and wiring before installing the new component.
Important Fitment Note
The 2M291 reference may be supplied with different suffixes and physical configurations. Confirm the complete marking printed on the original magnetron before ordering. The commonly listed suffix for this version is 2M291-M32.
Compare the antenna length, antenna-cap shape, ceramic insulator, mounting-hole spacing, flange orientation, cooling-fin arrangement, airflow direction, filament-terminal position and overall dimensions with the original magnetron.
Do not select this magnetron using only the microwave oven's advertised cooking wattage. The 1200W description refers to the commonly marketed magnetron class and does not guarantee compatibility with every microwave advertised as 1200W.
This magnetron is intended for selected inverter microwave ovens. Do not install it in a conventional transformer-type microwave unless the original magnetron reference and appliance service information specifically confirm compatibility.
This is a generic aftermarket component and must not be advertised as a genuine OEM part unless the supplied product and packaging specifically confirm original manufacture.
Critical Safety Warning
Microwave ovens contain extremely high voltages that can cause fatal electric shock. Inverter circuits and high-voltage components may remain dangerous after the appliance has been disconnected from the electrical supply.
Magnetron and inverter-board repairs must be carried out only by a suitably qualified and experienced microwave technician using the correct high-voltage testing and discharge procedures.
Inspect the waveguide, mica cover, antenna area and magnetron gasket for burning, corrosion or contamination before installation. A damaged waveguide can cause arcing and rapidly destroy the replacement magnetron.
After installation, the microwave must be checked for microwave-energy leakage using an approved leakage meter before being returned to service. Never operate the appliance with the outer cabinet removed.
