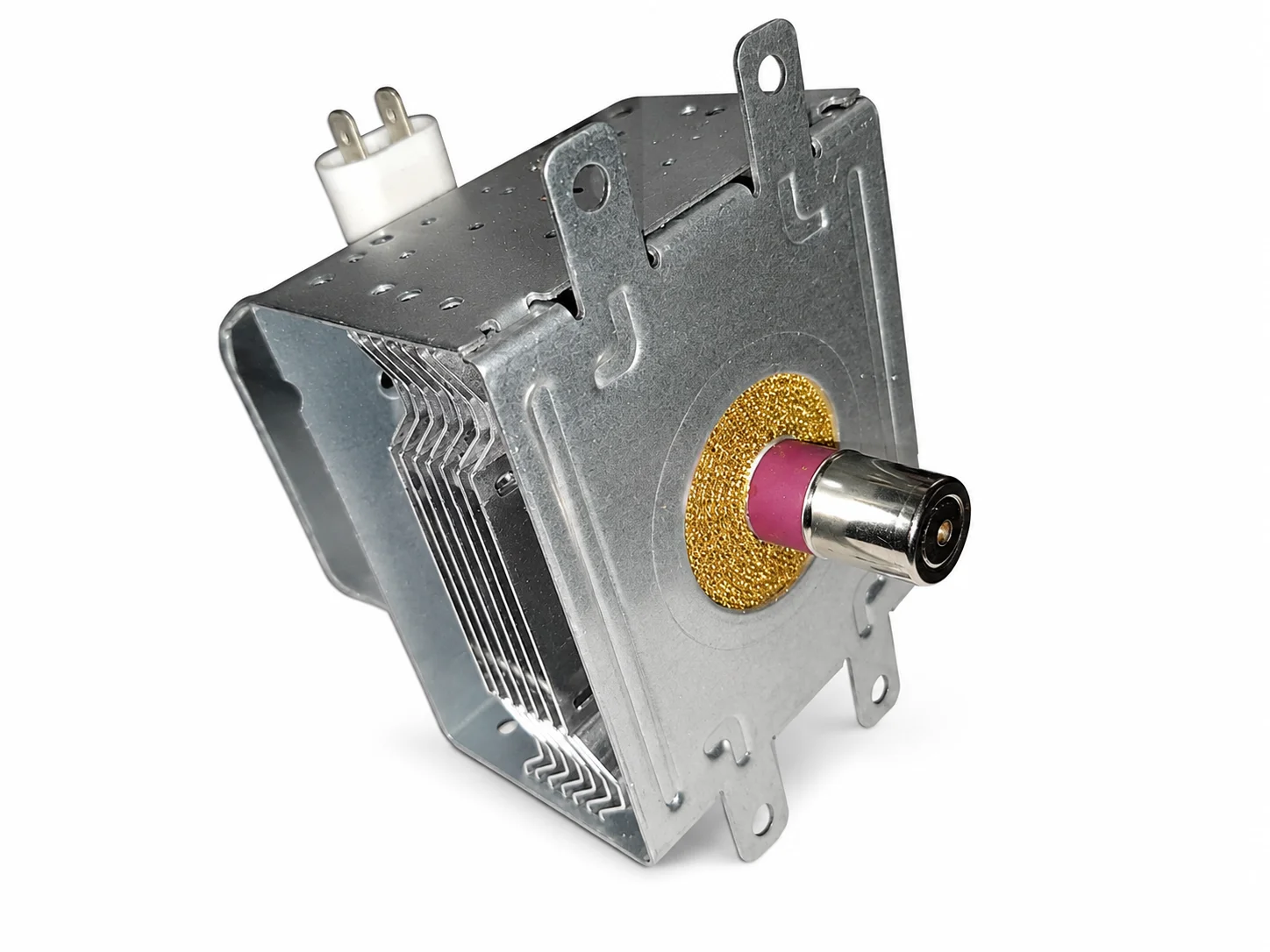

Generic Microwave Oven Magnetron – 2M210-M1 – Up to 1000W
The Generic Microwave Oven Magnetron 2M210-M1 is an aftermarket replacement microwave-generating tube suitable for selected domestic microwave ovens rated up to approximately 1000W. The magnetron converts high-voltage electrical energy into microwave energy, which is directed through the waveguide into the cooking cavity to heat food.
This generic replacement may be suitable for appliances using the same 2M210-M1 configuration or a confirmed equivalent magnetron. Compatibility must be established by comparing the original reference number, antenna, mounting bracket, airflow direction, cooling fins and electrical terminals.
Product Features
- Replacement reference: 2M210 / 2M210-M1
- Part type: Microwave oven magnetron
- Generic aftermarket replacement component
- Suitable for selected domestic microwave ovens
- Commonly marketed for microwave ovens rated up to approximately 1000W
- Typical operating frequency: approximately 2455MHz
- Generates the microwave energy used to heat food
- Suitable for replacing a failed magnetron where the specifications and physical configuration match
Common Symptoms This Part May Fix
- Microwave operates but does not heat food
- Food heating very slowly or unevenly
- Microwave producing an unusually loud electrical hum
- Arcing or sparking around the magnetron antenna area
- Burnt or damaged magnetron antenna cap
- Microwave stopping shortly after the heating cycle begins
- High-voltage fuse blowing when the magnetron is energised
- Magnetron filament testing open circuit
- Magnetron terminals showing leakage or continuity to the metal casing
Common Cross-Reference Numbers
- A670-FOH
- 2M107A-325
- 2M157-M1
- 2M161
- 2M172-FJB
- 2M204-M1
- OM75(31)
- S107-FJB
Cross-reference numbers are provided as a guide only. Similar magnetrons may have different antenna lengths, airflow directions, brackets or terminal positions and are not automatically interchangeable.
Important Diagnostic Note
A microwave that operates without heating does not automatically have a faulty magnetron. The high-voltage transformer or inverter board, high-voltage capacitor, diode, fuse, door switches, control board and associated wiring must also be tested.
A shorted capacitor, diode or transformer may damage a replacement magnetron or cause the appliance fuse to blow again. Diagnose the complete high-voltage circuit before installation.
Important Fitment Note
Do not select a magnetron using only the microwave wattage. Before ordering, compare the original magnetron reference, antenna length and shape, antenna cap, mounting-hole positions, mounting-ear orientation, cooling-fin arrangement, airflow direction, filament terminals and overall dimensions.
This generic magnetron must not be used in an inverter microwave unless the original magnetron reference and appliance documentation confirm compatibility.
Critical Safety Warning
Microwave ovens contain a high-voltage capacitor that may retain a potentially lethal electrical charge even after the appliance has been disconnected from the power supply. Magnetron replacement must be performed only by a suitably qualified and experienced microwave technician.
The magnetron gasket, waveguide surface and mounting screws must be correctly fitted. After installation, the appliance should be checked for microwave leakage using an approved microwave leakage meter before being returned to service.
Never operate the microwave with the outer cabinet removed, with a damaged waveguide or without a suitable load inside the cooking cavity.
Generic Microwave Oven Magnetron – 2M210
