Compatible Models:
Universal
Product Description:

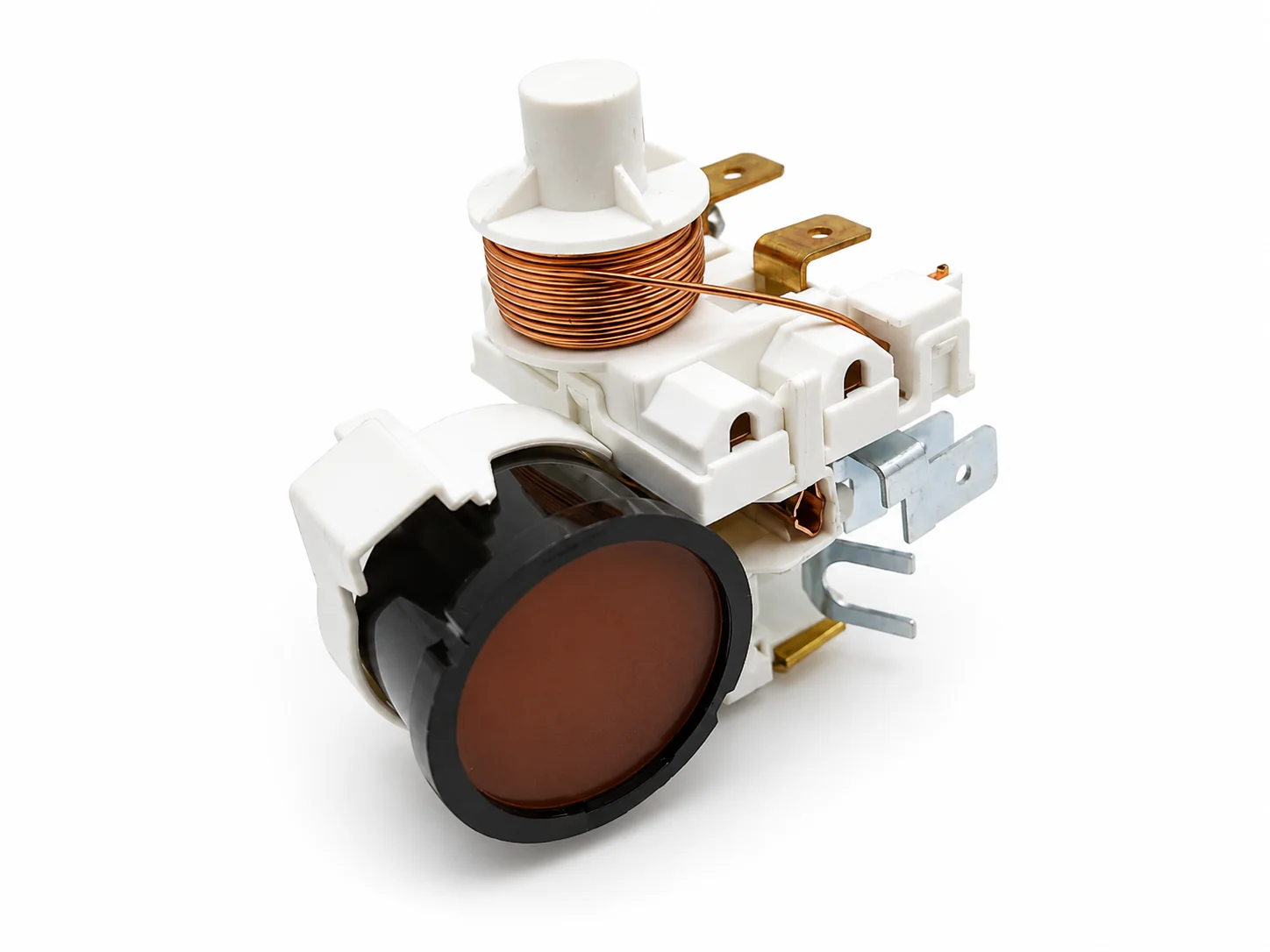

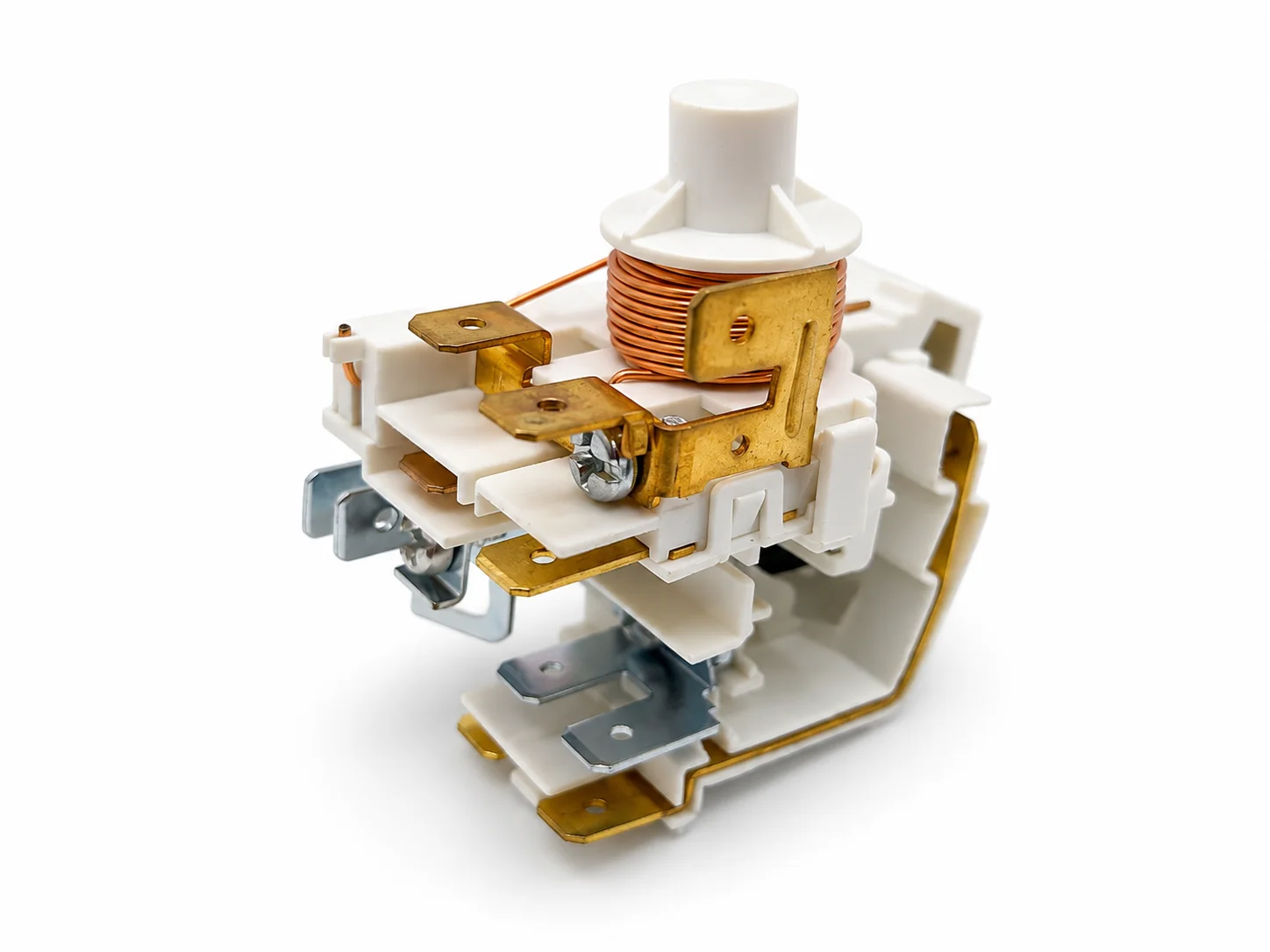

Universal Commercial Compressor Relay & Overload Assembly

The Universal Commercial Compressor Relay and Overload Assembly is an electromechanical starting and protection device suitable for selected single-phase commercial refrigeration compressors. It is commonly used on small commercial hermetic compressors, including certain 3/8 HP compressor applications, where the electrical specifications and terminal arrangement match.

The relay temporarily energises the compressor start winding during startup and disconnects it once the motor reaches operating speed. The integrated thermal overload helps protect the compressor against excessive current, overheating and stalled-rotor conditions.

Product Features

  • Product type: Combined compressor starting relay and thermal overload
  • Electromechanical current-relay design
  • Suitable for selected single-phase hermetic compressors
  • Commonly used in small commercial refrigeration equipment
  • Suitable for certain 3/8 HP compressor applications
  • Temporarily energises the compressor start winding
  • Disconnects the start winding after successful startup
  • Integrated overload protection helps prevent compressor damage
  • Multiple spade terminals for compatible electrical connections
  • Replacement for burnt, damaged or unreliable compressor starting devices

Common Applications

  • Commercial display refrigerators
  • Beverage and bottle coolers
  • Under-counter commercial fridges
  • Small cold rooms and freezer rooms
  • Commercial chest freezers
  • Ice machines
  • Refrigerated cabinets
  • Selected 3/8 HP hermetic compressors

Common Symptoms This Part May Fix

  • Compressor humming but not starting
  • Compressor starting intermittently
  • Overload clicking repeatedly
  • Compressor switching off shortly after startup
  • Burnt or damaged relay contacts
  • Start winding not being energised correctly
  • Compressor drawing excessive current during startup
  • Relay chattering or buzzing
  • Visible heat damage around the terminals
  • Compressor only starting after cooling down

Important Diagnostic Note

A compressor that hums or trips the overload does not automatically have a faulty relay. The compressor windings, supply voltage, start capacitor, run capacitor, wiring, terminal connections and refrigeration-system pressures must also be checked.

A mechanically seized or electrically damaged compressor can immediately overload or damage a replacement relay assembly. Test the compressor winding resistance, insulation to earth and starting current before installation.

Important Fitment Note

This is a universal-style commercial compressor relay and overload assembly and is not suitable for every compressor. Do not select it using compressor horsepower alone.

Before ordering, confirm the compressor voltage, frequency, rated current, locked-rotor current, winding arrangement, relay pickup and drop-out characteristics, overload rating, terminal layout and mounting configuration.

Compare the number and position of the spade terminals, relay coil, overload protector and wiring connections with the original starting device. Incorrect selection or wiring may prevent the compressor from starting or cause serious compressor damage.

Never bypass the thermal overload protector. Disconnect the equipment from the electrical supply before testing or replacing the relay assembly.

Universal Commercial Compressor Relay & Overload Assembly

R295,00
