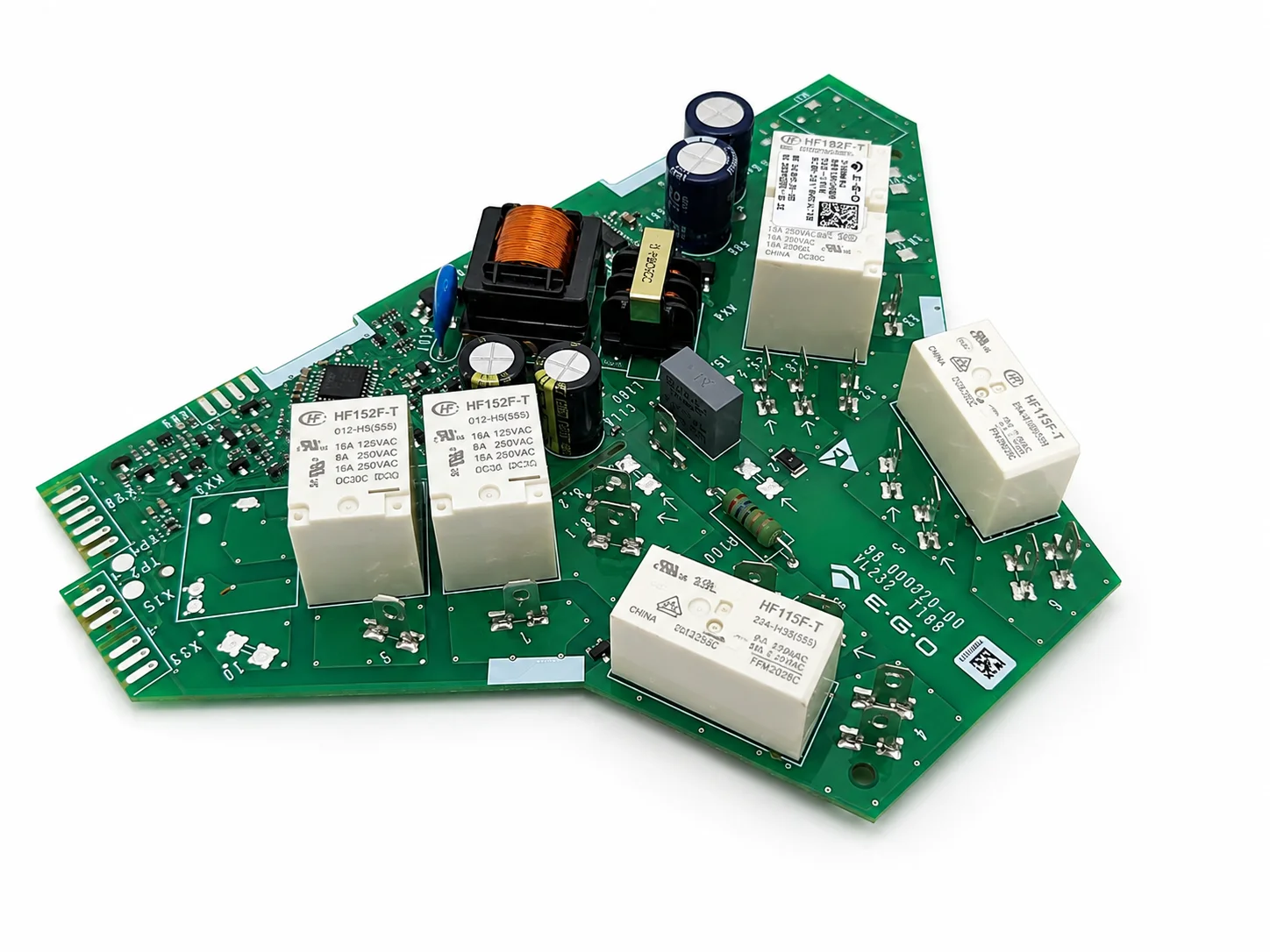

Bosch Ceramic Hob Relay Module / Power PCB – 11020241
The Bosch Ceramic Hob Relay Module 11020241 is a replacement power-control board designed for selected Bosch electric ceramic-glass hobs. It contains the switching relays and electronic components responsible for controlling power to the compatible cooking zones.
The relay board receives control signals from the hob's touch-control electronics and switches the radiant heating elements according to the selected heat settings. It is suitable for replacing an original board with burnt relays, damaged tracks, failed switching components or other confirmed electronic faults.
Product Features
- Bosch OEM part number: 11020241
- Previous / replaced reference: 12014669
- Board marking: YL232-14 N17
- Part type: Ceramic hob relay module / power PCB
- Suitable for selected Bosch electric ceramic-glass hobs
- Switches power to the compatible radiant cooking zones
- Works together with the hob's touch-control electronics
- Replacement for electrically damaged or defective relay boards
Common Symptoms This Part May Fix
- One or more cooking zones not heating
- Hob display operating while the heating zones remain cold
- Cooking zone operating intermittently
- Heating zone remaining continuously energised
- Relay clicking without the element heating
- Burnt or damaged relay contacts
- Visible burning or damaged tracks on the original PCB
- Hob switching off unexpectedly during use
- Power-related fault occurring when a cooking zone is selected
- Multiple cooking zones no longer receiving power
Important Diagnostic Note
A cooking zone that does not heat does not automatically have a faulty relay board. The radiant element, temperature limiter, touch-control module, wiring, terminal block and incoming electrical supply must also be inspected and tested.
A shorted heating element, damaged wiring or loose electrical connection may damage the replacement PCB. Test all connected loads and repair burnt terminals before fitting the new module.
Package Note
This product is the relay module / power PCB only unless specifically stated otherwise. The touch-control panel, ceramic glass, radiant elements, wiring harnesses and mounting hardware are not included.
Important Fitment Note
Before ordering, confirm the complete Bosch E-number, including the production index after the slash. Similar Bosch hobs may use different electronic modules despite having almost identical glass and control layouts.
Compare the 11020241 or YL232-14 N17 reference, PCB dimensions, connector positions, relay arrangement and mounting points with the original board.
Do not transfer wiring based only on connector position. Photograph and label every connection before removing the original PCB.
Electrical Safety Warning
Electric hobs operate at dangerous mains voltages and may use multiple live supply connections. Disconnect and verify isolation of the complete appliance supply before opening the hob.
PCB diagnosis and replacement should be performed by a suitably qualified appliance technician or electrician.
Bosch Ceramic-Glass Hob PC Board
R1600,00
1 in stock
Bosch Ceramic Hob Relay Module / Power PCB – 11020241
The Bosch Ceramic Hob Relay Module 11020241 is a replacement power-control board designed for selected Bosch electric ceramic-glass hobs. It contains the switching relays and electronic components responsible for controlling power to the compatible cooking zones.
The relay board receives control signals from the hob's touch-control electronics and switches the radiant heating elements according to the selected heat settings. It is suitable for replacing an original board with burnt relays, damaged tracks, failed switching components or other confirmed electronic faults.
Product Features
- Bosch OEM part number: 11020241
- Previous / replaced reference: 12014669
- Board marking: YL232-14 N17
- Part type: Ceramic hob relay module / power PCB
- Suitable for selected Bosch electric ceramic-glass hobs
- Switches power to the compatible radiant cooking zones
- Works together with the hob's touch-control electronics
- Replacement for electrically damaged or defective relay boards
Common Symptoms This Part May Fix
- One or more cooking zones not heating
- Hob display operating while the heating zones remain cold
- Cooking zone operating intermittently
- Heating zone remaining continuously energised
- Relay clicking without the element heating
- Burnt or damaged relay contacts
- Visible burning or damaged tracks on the original PCB
- Hob switching off unexpectedly during use
- Power-related fault occurring when a cooking zone is selected
- Multiple cooking zones no longer receiving power
Important Diagnostic Note
A cooking zone that does not heat does not automatically have a faulty relay board. The radiant element, temperature limiter, touch-control module, wiring, terminal block and incoming electrical supply must also be inspected and tested.
A shorted heating element, damaged wiring or loose electrical connection may damage the replacement PCB. Test all connected loads and repair burnt terminals before fitting the new module.
Package Note
This product is the relay module / power PCB only unless specifically stated otherwise. The touch-control panel, ceramic glass, radiant elements, wiring harnesses and mounting hardware are not included.
Important Fitment Note
Before ordering, confirm the complete Bosch E-number, including the production index after the slash. Similar Bosch hobs may use different electronic modules despite having almost identical glass and control layouts.
Compare the 11020241 or YL232-14 N17 reference, PCB dimensions, connector positions, relay arrangement and mounting points with the original board.
Do not transfer wiring based only on connector position. Photograph and label every connection before removing the original PCB.
Electrical Safety Warning
Electric hobs operate at dangerous mains voltages and may use multiple live supply connections. Disconnect and verify isolation of the complete appliance supply before opening the hob.
PCB diagnosis and replacement should be performed by a suitably qualified appliance technician or electrician.
Unsure about compatibility with your machine? Please confirm compatibility before ordering. Send us your model number and we’ll confirm it for you.
1 in stock
